Image is similar
1201 (LED Profilelement)

DL2S Aluminiumprofil

LED Profilelement

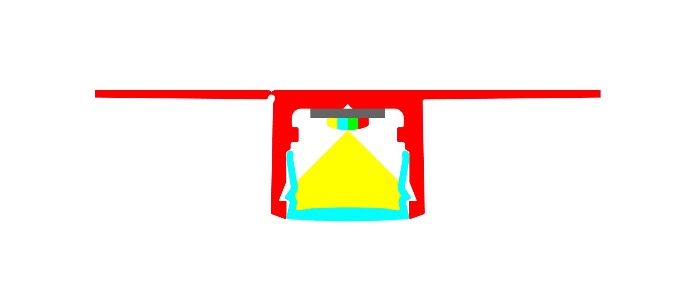

The DL2S aluminum profile is installed in drywall construction as well as in plastered surfaces. As with the DL Junior, LEDs can be installed or the DL curtain rail can be clicked in. Due to the larger depth, it also offers the possibility of accommodating the LED strip and a transparent curtain rail at the same time in order to create subtle ambient lighting together with curtain fabrics.

The painting and covering rubber is included in delivery.

Size: B 16,4 / 54 x H 13,8 x L 2000 mm.

Color: aluminum

Accesories:

  • LED cover in opal, satin, black and clear
  • Curtain rail & curtain lock in white, opal (available only in Germany) and black
  • Curtain glider white


3

(0.00 € / Unit)
Days
:
Hours
:
Mins
:
Secs
    1201 (PE88.0201)
    DL2S Aluminiumprofil
    2 years warranty

    Legal warranty (§§ 437, 438 BGB)

    This combination does not exist.

    Your price: from 32.19 € 32.19 € 32.19 EUR

    32.19 €

    You Save : 0.00 € (0%)
    Price without VAT: 32.19 € | VAT: 0.00 € Price per m : 19.16 € ( 16.10 € net)
    Nicht vorrätig
    Du hast bereits eine Anfrage für dieses Produkt gestellt.
    Ups ... es ist etwas schief gegangen!
    Bitte gebe eine gültige E-Mail Adresse ein.

    Delivery and shipping costs details *

    Currently no delivery date can be given.

    Only pickup at our warehouse is possible!

    No shipping rule found. Please contact our customer support.

    We ship this product to the following countries (pickup for EU citizens of all countrys possible):


    * The calculation is valid for the current shopping cart, thereby the delivery to United States was assumed. Delivery times and shipping costs are calculated exactly after specifying the delivery address at the time of purchase.


    Safety Instructions

    message.name

    Products can be sharp-edged and there is a risk of injury.

    message.name

    The product can release chips during processing.

    message.name

    Mit LED Bändern bestückte Profile sind kein Ersatz für Lichtschwerter und können erhelbiche Verletzungen am Gegenüber hervorrufen.


    Manufacturer

    LED Profilelement GmbH | Industriestraße 4 | 92360 Mühlhausen | Deutschland | info@ledprofilelement.de

    Share :


    Licht und Funktion elegant kombiniert

    Das DL2S Profil bringt Lichtgestaltung und textile Rauminszenierung in Einklang. Als vielseitiges Aluminiumprofil für den Einbau in Trockenbau- und Putzflächen konzipiert, lässt es sich sowohl mit LED-Lichtbändern als auch mit der DL Vorhangschiene kombinieren. Dadurch entstehen stilvolle Lichtszenen in Verbindung mit Vorhangstoffen, die eine dezente und wohnliche Atmosphäre erzeugen.

    Stilvolle Raumbeleuchtung in Form einer Lichtlinie mit dem DL2S.

    Produktbeschreibung

    Das DL2S LED-Profil wird aus hochwertigem Aluminium gefertigt und überzeugt durch ein erweitertes Tiefenmaß. Dieses erlaubt die gleichzeitige Installation eines LED-Bands und einer transparenten Gardinenschiene. So lässt sich sowohl eine funktionale Vorhangführung als auch eine indirekte Ambientebeleuchtung realisieren – mit nur einem Einbauelement.

    Wie beim DL Junior können die LED-Bänder direkt ins Profil eingebracht oder alternativ die DL Vorhangschiene eingeklickt werden. Dank der cleveren Konstruktion eignet sich das Profil gleichermaßen für den Einsatz in Trockenbaukonstruktionen und verputzten Wand- oder Deckenflächen. Ein Mal- und Abdeckgummi ist im Lieferumfang enthalten und erleichtert die saubere Ausführung.

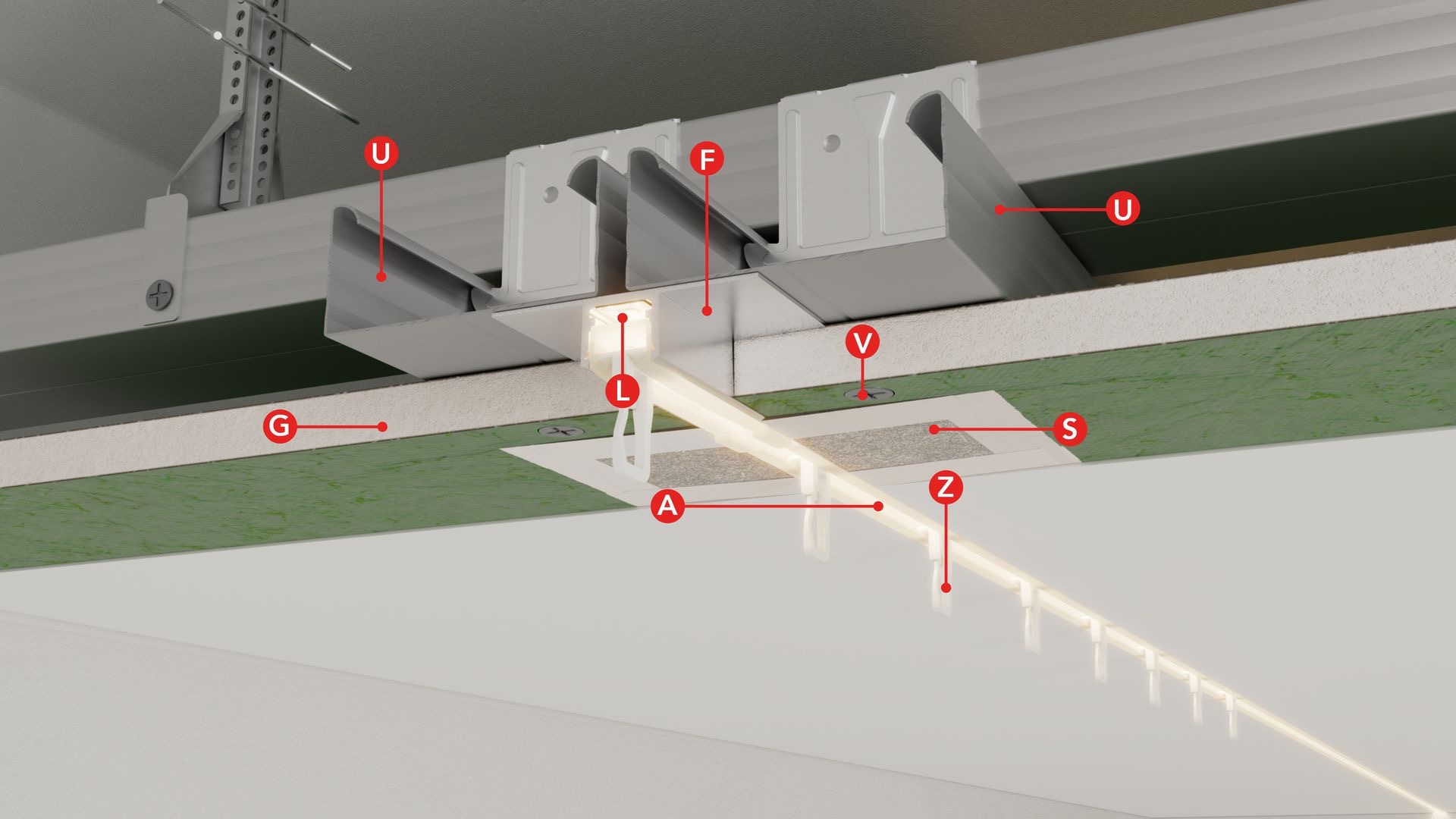

    Anwendung für Licht- und Gardinenintegration

    U

    Unterkonstruktion aus Metall oder Holz

    S

    Spachtelfläche

    A

    LED Lichtstreu-Abdeckung/ Vorhangschiene

    Z

    Zubehör (Vorhanggleiter)

    G

    Gipskartonplatte 12,5mm

    L

    LED Lichtband

    F

    Flügel des Profils

    V

    Verschraubungspunkt

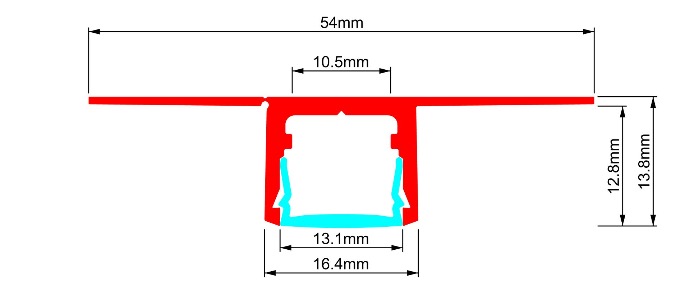

    Technische Daten zum DL2S Flügel-Profil


    Länge:     2000 mm
    Höhe:     13,8 mm
    Breite:     54 mm
    Material:     Aluminium

    Kompatibilität mit Knauf Trockenbau- und Innenputzsystemen (Auch mit allen anderen Herstellern kompatibel)

    Das  DL2S Flügel-Profil ist ideal für die Integration in folgende Systeme:

    • Knauf Metallständerwände (z. B. W11.de) (oder gleichwertig)
    • Knauf Holzständerwände (z. B. W12.de, einfach oder doppelt beplankt)

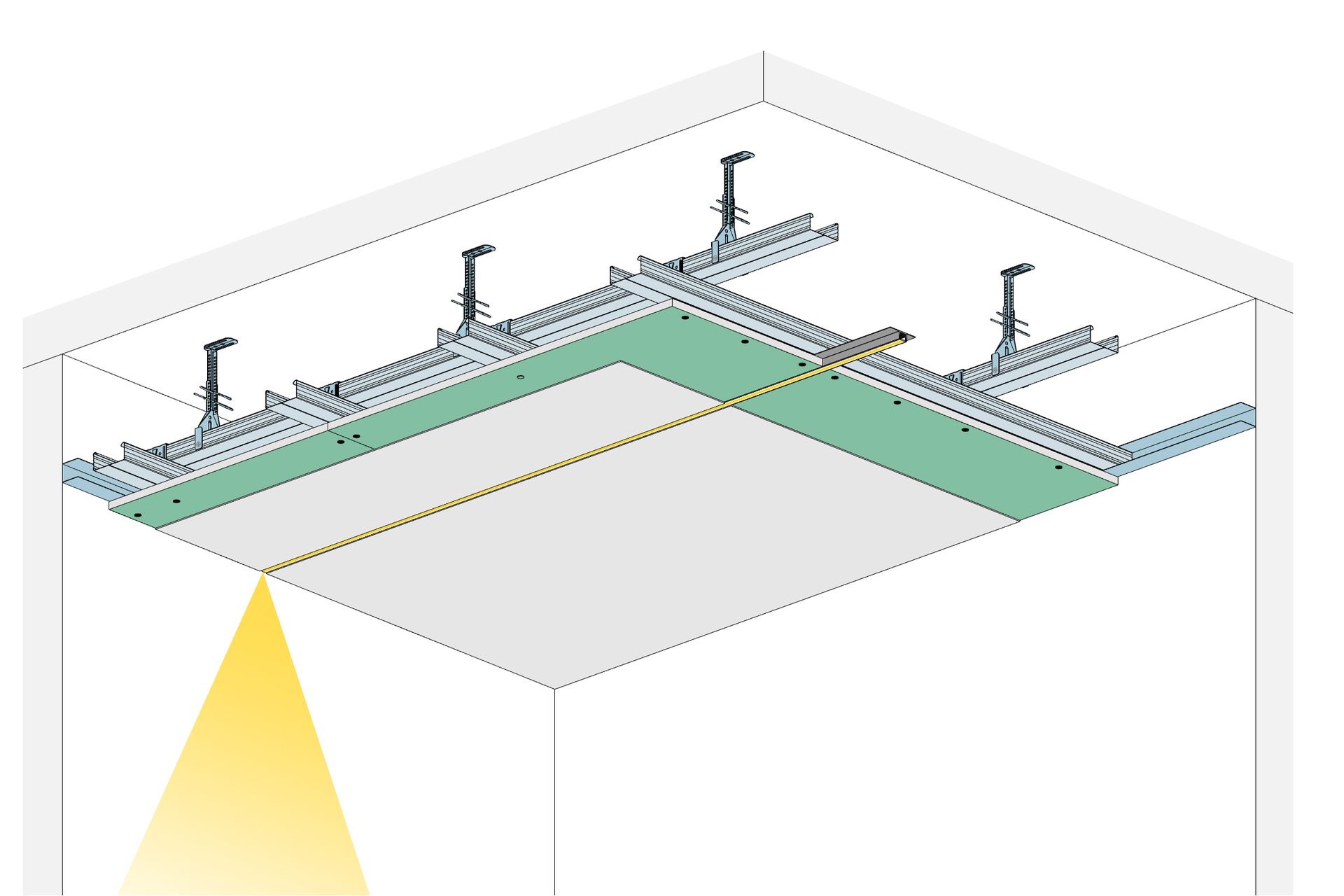

    • Knauf D11 Plattendecken, ob direkt befestigt oder als abgehängte Unterdecke
    • Rigips abgehängte Decke (z.B. MD10RB / MD10HA / MD10GX)
    • Rigips Dachausbau (z.B. DA30RB / MD10HA / DA31RF / DA40RB)
    • Rigips Metallständerwände, Vorsatzschale (z.B. MW11 / MW12 / MW13 / VS11)
    • Danogips (z.B. W00 / HW00 / D00 / V00 usw.)

    Das DL2S LED-Aluprofil ist auch mit den gängigen Innen-Putzsysteme aller Hersteller kombinierbar (Knauf, Sto, Brillux, Saint Gobain Weber, Quick-Mix, Alligator, Schwenk, Hasit usw.)

    Dank dieser Flexibilität lässt sich das Profil sowohl in Standardkonstruktionen als auch in anspruchsvollen Projekten effizient einsetzen.

    Warum Architekten auf das DL2S setzen:

    Architekten und Innenraumgestalter schätzen das DL2S Profil als intelligente Lösung für kombinierte Licht- und Textilkonzepte. Es erlaubt die Realisierung von Vorhangsystemen mit integrierter Beleuchtung, ohne zusätzliche Bauteile oder sichtbare Technik. Dadurch entstehen ruhige, elegante Raumwirkungen mit hoher gestalterischer Qualität.

    Fazit: Licht trifft Stoff


    Das DL2S LED-Vorhangschienenprofil vereint funktionale Gardinenführung mit dezenter Ambiente Beleuchtung in einem harmonischen System. Es ist die ideale Wahl für Projekte, die textile Elemente mit architektonischem Licht verbinden sollen.
